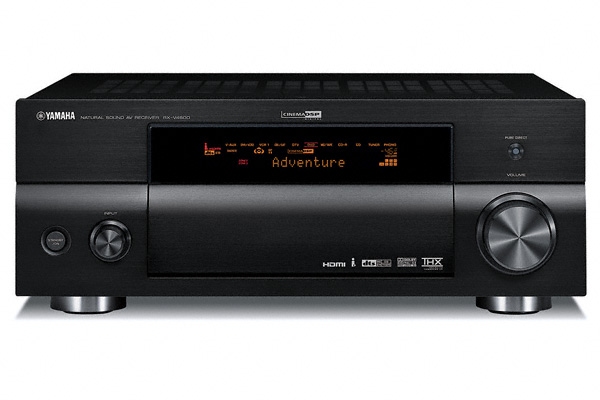

Yamaha RX-V4600 AV Receiver

September 22, 2008

Yamaha’s jam-packed RX-V4600 receiver looks and sounds great and boasts something altogether new: HD Radio!

Audio Review says:

The RX-V4600 is a receiver designed for the digital era. It sets the standard for a new generation of receivers that will increase home theater enjoyment with more vivid images and richly detailed sound, plus greater versatility and convenience.

For movies and music, multi-channel surround sound and stereo, the RX-V4600 will ensure that your entertainment is totally enjoyable.

Audio Section

Minimum RMS Output Power (8 ohms, 20Hz-20kHz, 0.04% THD)

Front Channels 130W +130W

Center Channels 130W

Surround Channels 130W +130W

Surround Back Channels 130W +130W

High Dynamic Power, Low Impedance Drive Capability Yes

Dynamic Power/Channel 8 ohms 165 W 6 ohms 205 W 4 ohms 260 W 2 ohms 340 W

Linear Damping Yes

Damping Factor (8 ohms, 20 Hz-20kHz) 140 (speaker A)

Input Sensitivity/ Impedance Phono (MM) 3.5 mV/47 k-ohms CD 200 mV/47 k-ohms

Frequency Response 10 Hz-100 kHz +0, -3dB

Total Harmonic Distortion (20Hz-20kHz) CD (Front Sp Out) 0.04%

Signal to Noise Ratio (CD, 250 mV) 100dB

Filter Characteristics Front, Center, Surround, Surround Back, (Small, fc=) 40, 60, 80, 90, 100, 110, 120 High Pass Filter Variable Crossover 160 and 200 Hz (12 dB/oct.) Subwoofer (fc=) 40, 60, 80, 90, 100, 110, 120 Low Pass Filter Variable Crossover 160 and 200 Hz (24dB/oct.)
